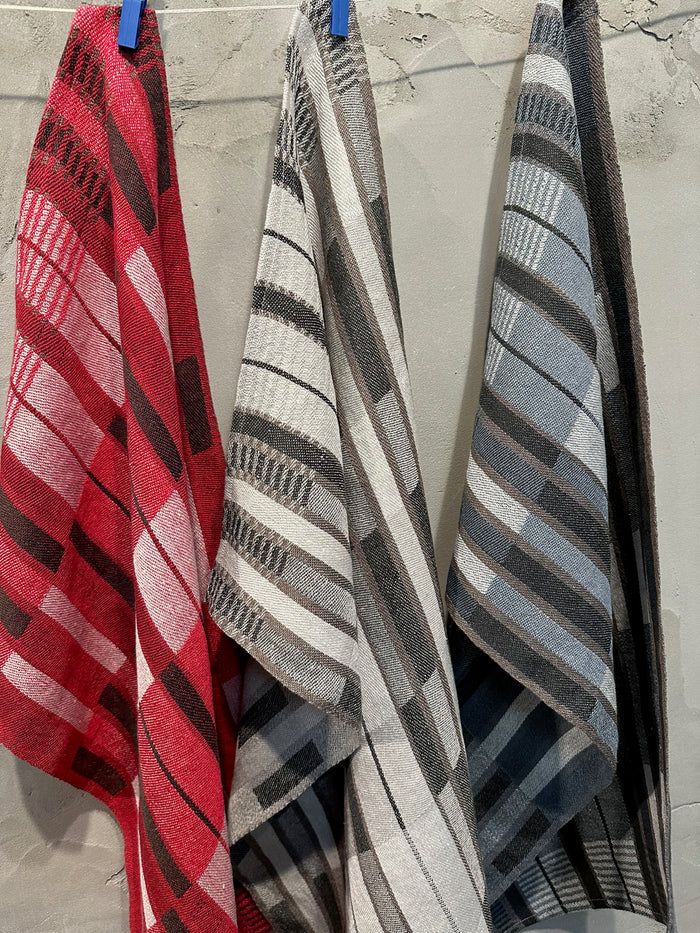

Satin Graphic Towels

This 15-shaft pattern is woven with Euroflax 30/2 linen in a 5-thread satin structure at 32 ends per inch. There are 3 colors in the warp, and each towel as a different single color weft.  As shown, the warp is neutral and the weft colors can be in most any color.

Yield: 3 towels Finished size: 29" x 18"
Structure:  5-Thread Satin
Equipment: Table or Dobby  loom – minimum 15 shafts; 8-dent reed (4 per dent); min width 19.75”
Heddles: Shafts 1-5: 62, Shaft 6: 31, Shafts 7-10: 30, Shafts 11-15: 34
Sett: 32epi, 32 ppi
Yarn: Euroflax 30/2 Linen
Warp Colors: Pewter 600 yds, Charcoal 880 yds, Cream 1040 yds
Weft Colors: 2000 yds total, 668 per towel
Warp Length: 4 yds (allows 26” loom waste)
Yarn Kit Contains:
Warp Yarns:  Color 1 3-oz (Pewter as shown), Color 2 4-oz (Charcoal as shown), Color 3 6-oz (Cream as shown)
Weft- Color 1, 2 and 3 3-oz each. As shown Red, Cream, Heron Grey.
WIF Files for Download (includes the section assembly for modifying size in TempoWeave)
·       Satin5GraphicTU (tie-up)
·       Satin5GraphicLU (liftplan)
·       Satin5GraphicProfileSections (for TempoWeave)
·       Satin5GraphicProfile
WP9009
